Australian Standard (Metric) Steel Sections


This is a collection of metric steel sections for use in solid modelling programs, provided both as an IronCAD Add-On, for parametric construction of sections within IronCAD, and a collection of over 570 individual SAT files (in version 1.7 format) for use in most other solid modelling CAD programs. The steel sections covered include the following,

BHP Hot Rolled and Structural Steel Products Catalogue

  • Universal Beams
  • Universal Columns
  • Column Cores
  • Universal Bearing Piles
  • Equal Angles
  • Unequal Angles
  • Parallel Flange Channel
  • Tapered Flange Beam
  • Welded Beams
  • Welded Columns
  • Rod
  • Square
  • Round
  • Flat

Hollow Sections
  • Circular Hollow Sections
  • Rectangular Hollow Sections
  • Square Hollow Sections

Modified Beam Sections
  • Tee (half UB sections)
  • Tee (half UC sections)

Purlin Sections
  • C Section
  • Z Section

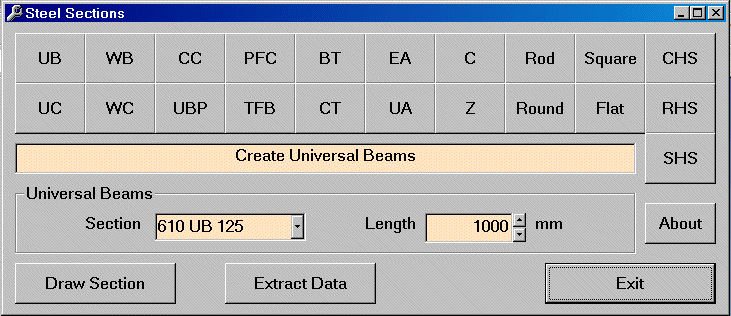

The following is the dialogue box for the Steel Sections application which runs within IronCAD.
